Arq Light · Interior

Scenic Line

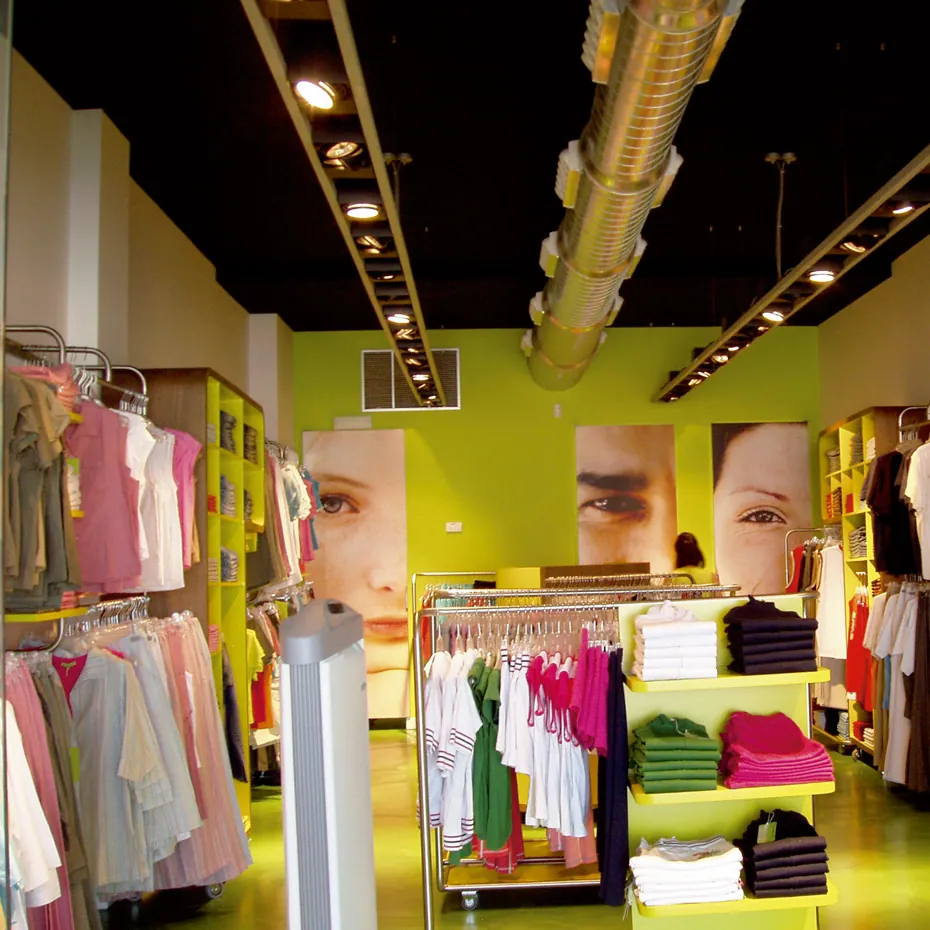

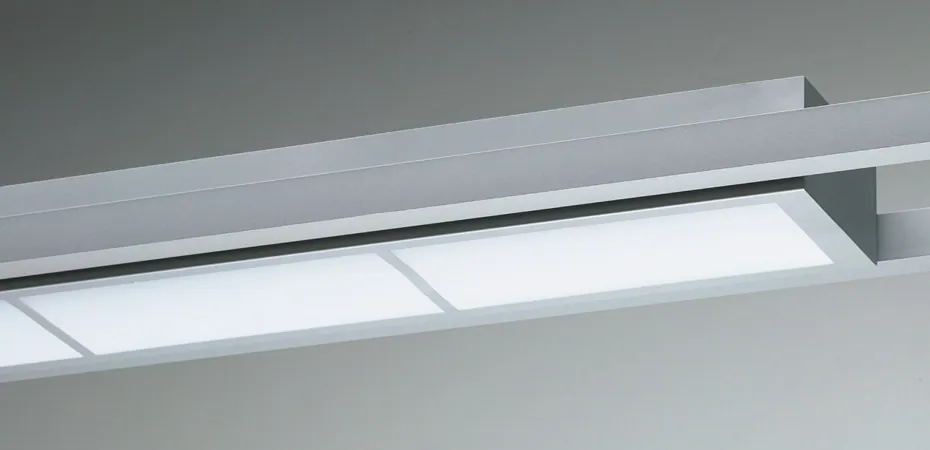

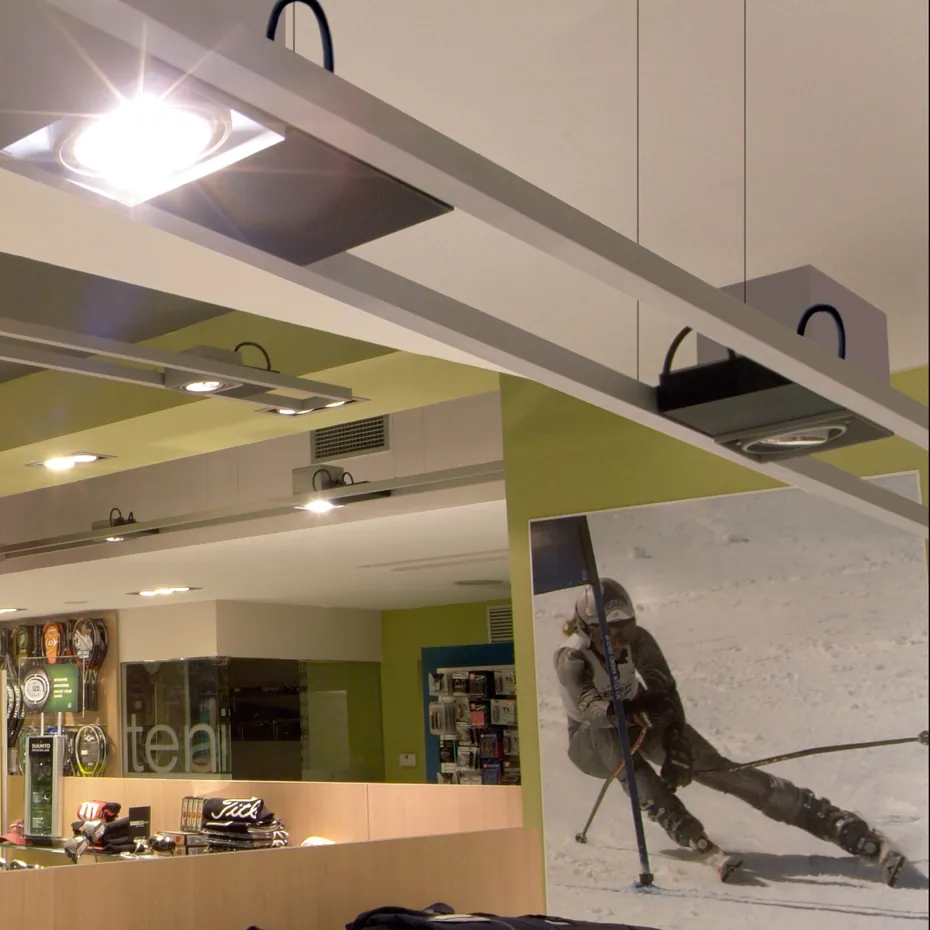

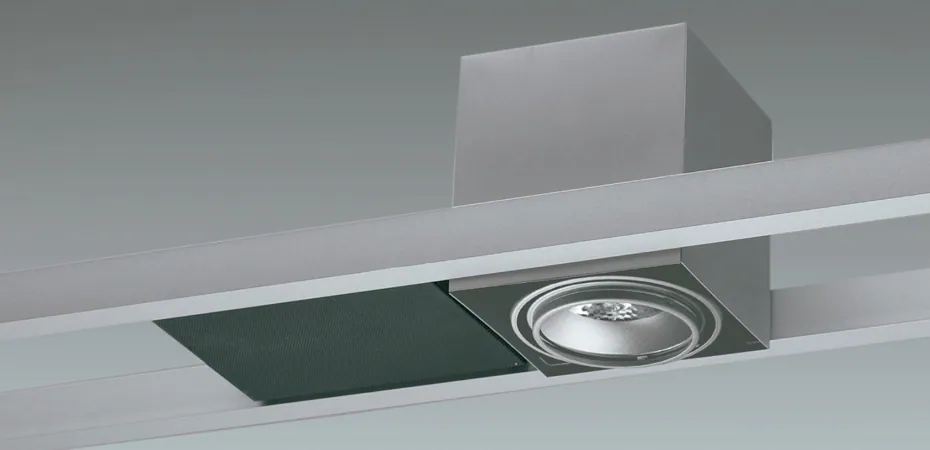

SCENIC LINE is an ingenious freestyle pendant structural system which can incorporate multipurpose luminaires with multidirectional angle-adjustable fixtures. Using spotlights the system can provide perfect accent lighting for products and a variety of lighting effects in smaller zones and surfaces. SCENIC LINE is ideal for use in window displays, fashion boutiques, small exhibition areas, etc. The system can also support fluorescent lamps with different optics for more uniform, general lighting. The SCENIC LINE collection also includes the SCENIC range of wall and ceiling-mounted lights, vertical and angle-adjustable pendant luminaires and easy to move fl oor lamps.

Texto disponible únicamente en inglés en el catálogo original.

Línea: Arq Light
Aplicación: Interior
Referencias: 31
Documentación: 8

Solicitar información

Descargar ficha técnica Ver catálogo interactivo

Referencias

Datos extraídos de las fichas técnicas PDF de Castan. Consulte el documento original para acabados, ópticas y accesorios.

Referencia	Potencia	Medidas	Detalle en ficha
SLC 2000	—	2000 mm · 2000 mm	SLC 2000 2000 mm (suministro 2 unidades) / 2000 mm (2 units)
SLC 3000	—	3000 mm · 3000 mm	SLC 3000 3000 mm (suministro 2 unidades) / 3000 mm (2 units)
SL 224	2 x 24 / 2 x 14 W	600 mm	SL 224 2 x 24 / 2 x 14 W 600 mm
SL 254	2 x 54 / 2 x 28 W	1200 mm	SL 254 2 x 54 / 2 x 28 W 1200 mm
SL 249	2 x 49 / 2 x 35 W	1500 mm	SL 249 2 x 49 / 2 x 35 W 1500 mm
SL 255	2 x 55 W	600 mm	SL 255 2 x 55 W 600 mm [ Luminarias con sistema
SLP 224	2 x 24 / 2 x 14 W	600 mm	SLP 224 2 x 24 / 2 x 14 W 600 mm L
SLP 254	2 x 54 / 2 x 28 W	1200 mm	SLP 254 2 x 54 / 2 x 28 W 1200 mm
SLP 280	2 x 80 / 2 x 49 / 2 x 35 W	1500 mm	SLP 280 2 x 80 / 2 x 49 / 2 x 35 W 1500 mm
SL 70 HO	1 x 70 W	470 mm	SL 70 HO 1 x 70 W Rx 7s 470 mm
SL 150 HO	1 x 150 W	470 mm	SL 150 HO 1 x 150 W Rx 7s-24 470 mm
SL 70 G	1 x 70 W	—	SL 70 G 1 x 70 W
G 12	—	370 mm	G 12 370 mm mínimo / minimum L
SL 150 G	1 x 150 W	—	SL 150 G 1 x 150 W
SL 100 GS	1 x 100 W	370 mm	SL 100 GS 1 x 100 W GX 12-1 370 mm mínimo / minimum
SL 170 P	1 x 70 W	370 mm	SL 170 P 1 x 70 W 370 mm
SL 170 CD	1 x 70 W	370 mm	SL 170 CD 1 x 70 W 370 mm
SL 135 CD	1 x 35 W	370 mm	SL 135 CD 1 x 35 W 370 mm
SL 1100 S	1 x 100 W	300 mm	SL 1100 S 1 x 100 W - 12V 300 mm
SL 250 S	2 x 50 W	440 mm	SL 250 S 2 x 50 W - 12V 440 mm
SL 2100 S	2 x 100 W	440 mm	SL 2100 S 2 x 100 W - 12V 440 mm
SL 350 S	3 x 50 W	650 mm	SL 350 S 3 x 50 W - 12V 650 mm
SL 3100 S	3 x 100 W	650 mm	SL 3100 S 3 x 100 W - 12V 650 mm
SL 121.25 SLD	1 x 21 W	300 mm	SL 121.25 SLD 1 x 21 W - 700 mA 250 300 mm
SL 121.45 SLD	1 x 21 W	300 mm	SL 121.45 SLD 1 x 21 W - 700 mA 450 300 mm
SL 221.25 SLD	2 x 21 W	440 mm	SL 221.25 SLD 2 x 21 W - 700 mA 250 440 mm
SL 221.45 SLD	2 x 21 W	440 mm	SL 221.45 SLD 2 x 21 W - 700 mA 450 440 mm
SL 321.25 SLD	3 x 21 W	650 mm	SL 321.25 SLD 3 x 21 W - 700 mA 250 650 mm
SL 321.45 SLD	3 x 21 W	650 mm	SL 321.45 SLD 3 x 21 W - 700 mA 450 650 mm
SLX 254	2 x 54 W	1685 mm	SLX 254 2 x 54 W + 2 x 50 W - 12 V 1685 mm
SLX 249	2 x 49 W	1985 mm	SLX 249 2 x 49 W + 2 x 50 W - 12 V 1985 mm
