Box

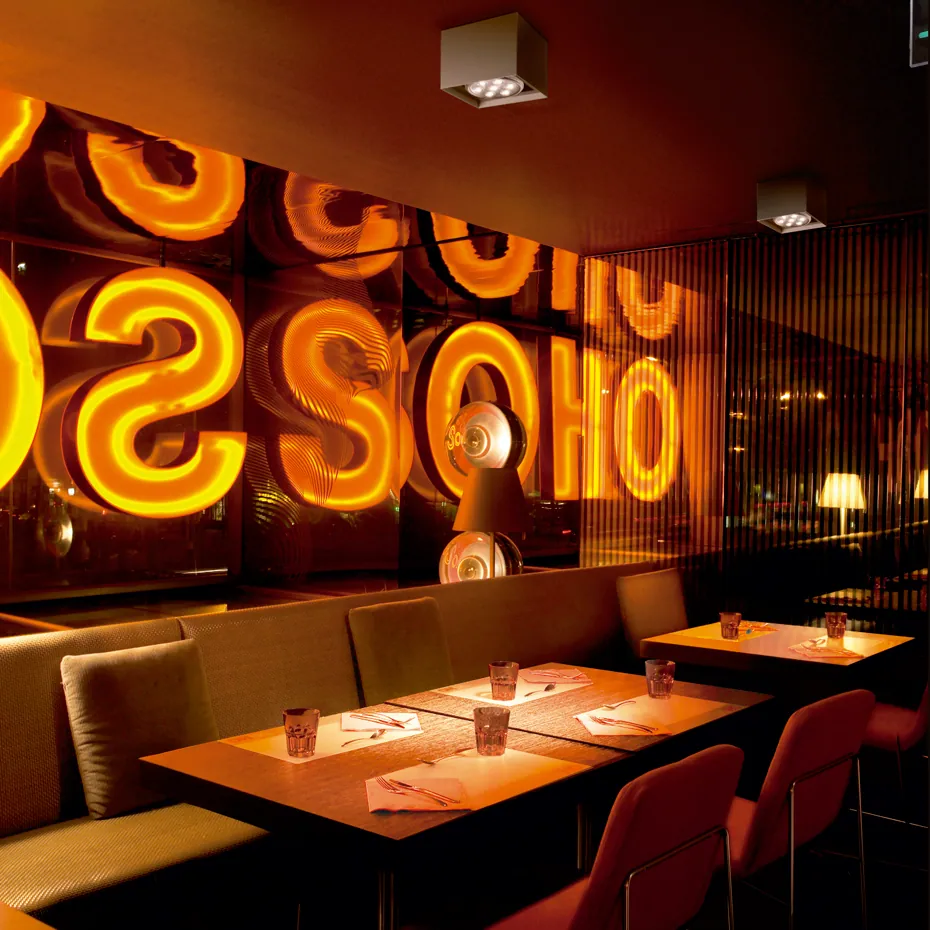

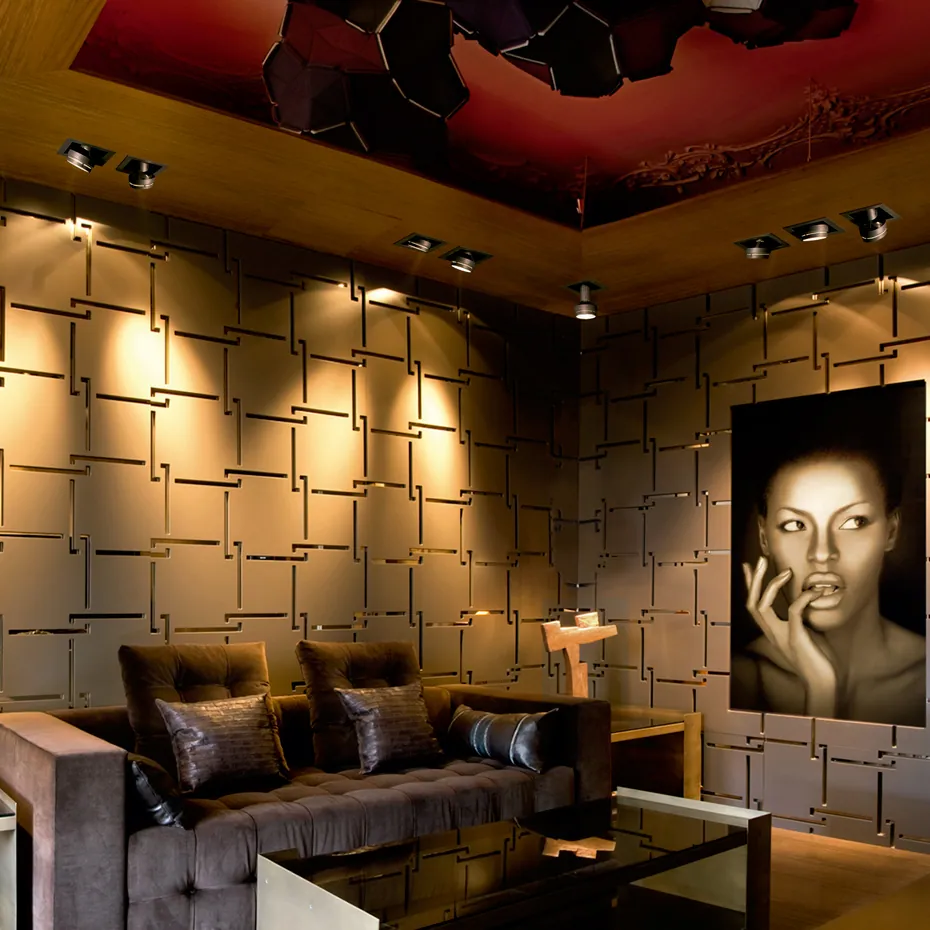

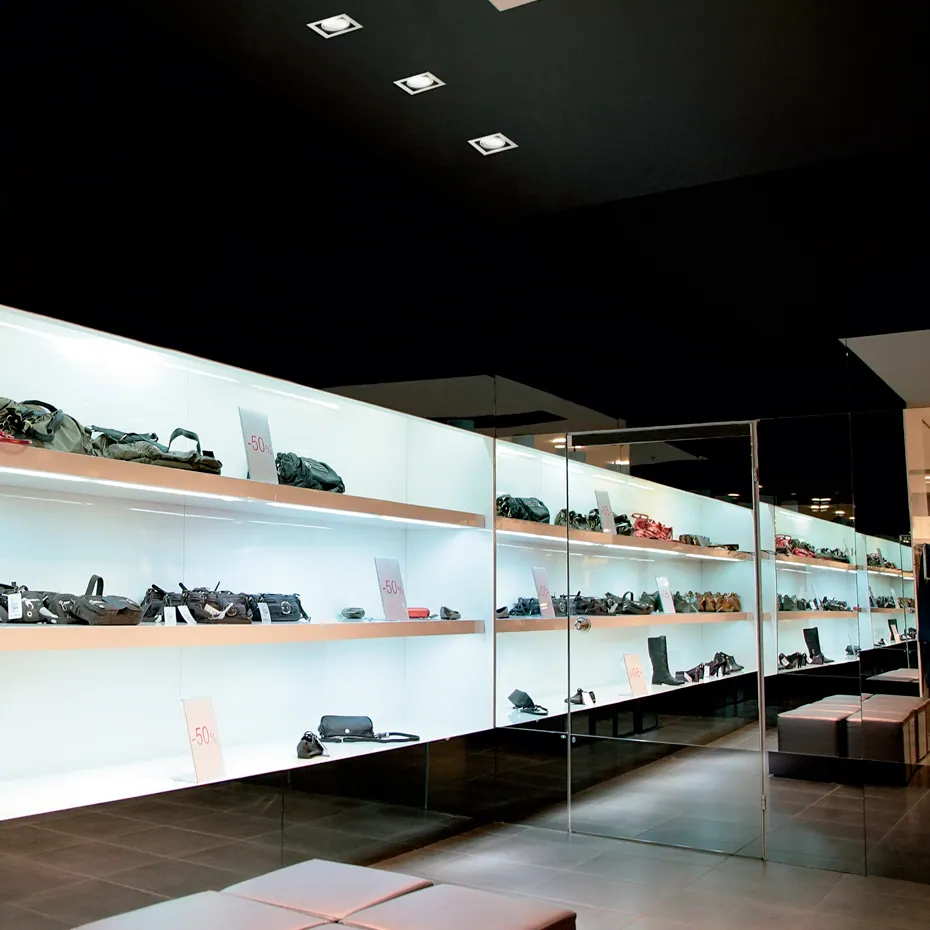

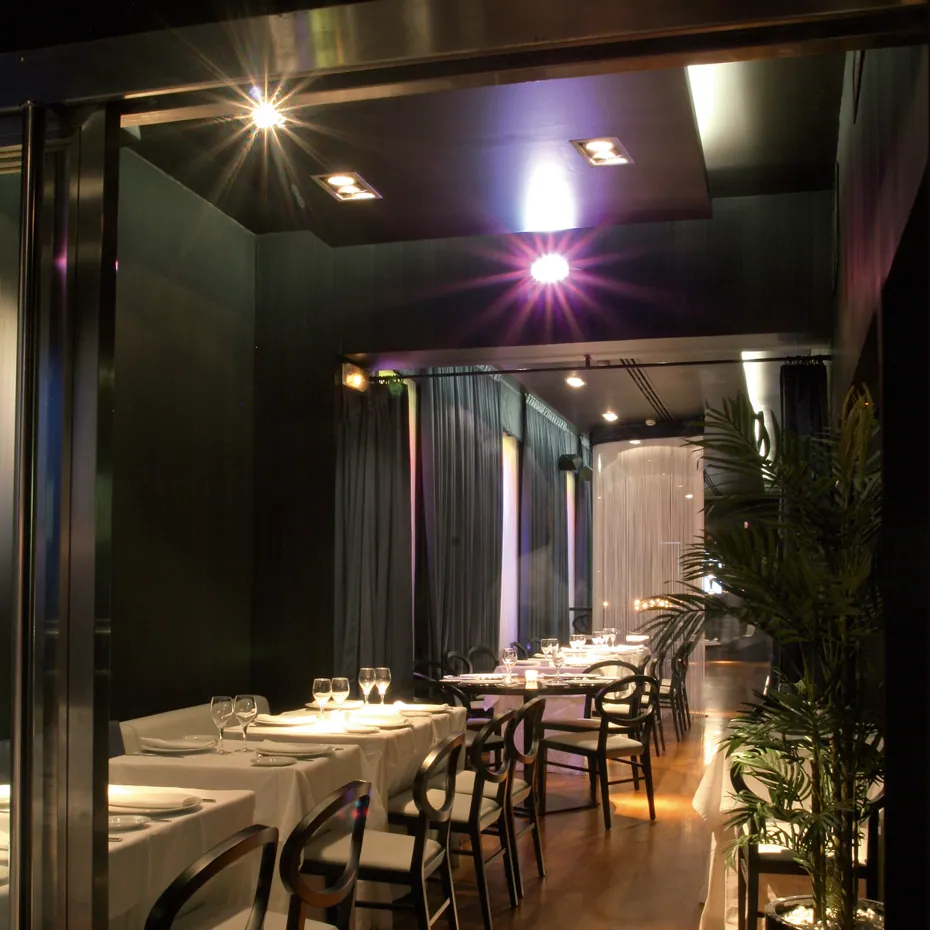

BOX meets all the lighting requirements of modern interiors, especially fashion boutiques. Creating an ambience with different lighting effects requires a range of recessed or surface-mounted luminaires arrayed according to a multidirectional downlight concept using different types of light source. The design and colour of the luminaires combine to create a highly attractive effect. With their frames and gimbal ring system in metallic grey or white and recessed casings in black, BOX luminaires combine the colours of the latest minimalist trends in architecture for a solution which is ideal for commercial premises, exhibition areas, walkways, etc.
Texto disponible únicamente en inglés en el catálogo original.
- Línea
- Arq Light
- Aplicación
- Interior
- Referencias
- 18
- Documentación
- 2
Referencias
Datos extraídos de las fichas técnicas PDF de Castan. Consulte el documento original para acabados, ópticas y accesorios.
| Referencia | Potencia | Medidas | Detalle en ficha |
|---|---|---|---|
| BOX 450 S | 4 x 50 W | 350 mm | BOX 450 S 4 x 50 W - 12 V 350 mm |
| BOX 4100 S | 4 x 100 W | 350 mm | BOX 4100 S 4 x 100 W - 12 V 350 mm |
| BOX 350 S | 3 x 50 W | 475 mm | BOX 350 S 3 x 50 W - 12 V 475 mm |
| BOX 3100 S | 3 x 100 W | 475 mm | BOX 3100 S 3 x 100 W - 12 V 475 mm |
| BOX 250 S | 2 x 50 W | 337 mm | BOX 250 S 2 x 50 W - 12 V 337 mm |
| BOX 2100 S | 2 x 100 W | 337 mm | BOX 2100 S 2 x 100 W - 12 V 337 mm |
| BOX 1100 S | 1 x 100 W | 198 mm | BOX 1100 S 1 x 100 W - 12 V 198 mm |
| BOX 450 | 4 x 50 W | 346 mm | BOX 450 4 x 50 W - 12 V 346 mm |
| BOX 4100 | 4 x 100 W | 346 mm | BOX 4100 4 x 100 W - 12 V 346 mm |
| BOX 650 | 6 x 50 W | 895 mm | BOX 650 6 x 50 W - 12 V 895 mm |
| BOX 6100 | 6 x 100 W | 895 mm | BOX 6100 6 x 100 W - 12 V 895 mm |
| BOX 450 L | 4 x 50 W | 612 mm | BOX 450 L 4 x 50 W - 12 V 612 mm |
| BOX 4100 L | 4 x 100 W | 612 mm | BOX 4100 L 4 x 100 W - 12 V 612 mm |
| BOX 350 | 3 x 50 W | 473 mm | BOX 350 3 x 50 W - 12 V 473 mm |
| BOX 3100 | 3 x 75 W | 473 mm | BOX 3100 3 x 75 W / 100 W - 12 V 473 mm |
| BOX 250 | 2 x 50 W | 334 mm | BOX 250 2 x 50 W - 12 V 334 mm |
| BOX 2100 | 2 x 100 W | 334 mm | BOX 2100 2 x 100 W - 12 V 334 mm |
| BOX 1100 | 1 x 100 W | 195 mm | BOX 1100 1 x 100 W -12V 195 mm |
